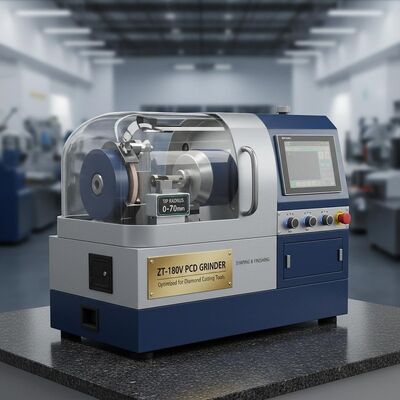

ZT-180V PCD grinder incorporating tip radius 0-70mm optimized for shaping and finishing diamond cutting tools

Product Description:

The ZT-180V PCD Grinding Machine is an advanced and highly efficient PCD/PCBN Tools grinder designed to meet the rigorous demands of precision grinding for hard materials. Specifically engineered to handle the complexities associated with polishing and shaping polycrystalline diamond (PCD) and polycrystalline cubic boron nitride (PCBN) tools, this machine stands out as a reliable solution for industries requiring exceptional accuracy and durability in their cutting tools.

One of the most notable features of the ZT-180V model is its versatile tip radius capability, ranging from 0 to 70mm. This wide range allows operators to grind a variety of tool geometries, making it suitable for a diverse array of applications. Whether it is for fine finishing of intricate tool edges or shaping larger, more robust components, this PCD grinding machine offers the flexibility needed to adapt to different production requirements.

Weighing in at 1500 kilograms, the ZT-180V is robustly built to ensure stability and minimize vibrations during the grinding process. This substantial machine weight contributes to its precision, as it helps maintain consistent cutting conditions and high-quality surface finishes. The solid construction also enhances the machine's durability, making it a long-term investment for workshops that demand reliable performance in grinding hard materials.

Equipped with a high-precision FAGOR angle encoder, the ZT-180V PCD/PCBN Tools grinder excels in delivering exceptional angular accuracy. This encoder system provides real-time feedback and precise control over grinding angles, which is crucial when working with hard and brittle materials. The precise angle control ensures that the tools produced maintain their intended geometry, thereby improving tool life and machining efficiency in subsequent manufacturing processes.

The packing size of this PCD grinding machine measures 1850*2100*1650mm, making it compact enough to fit into most industrial workshops without compromising on workspace. Despite its relatively compact footprint, the ZT-180V offers a spacious and ergonomic working area, allowing operators to easily load, unload, and adjust tools during the grinding process. This design consideration enhances productivity and user comfort during extended operation periods.

As a specialized hard materials grinder, the ZT-180V is particularly adept at processing materials that are notoriously difficult to machine, such as PCD and PCBN composites. These materials are widely used in cutting tools for their superior hardness and wear resistance, but they require highly precise and reliable grinding equipment due to their brittle nature. The ZT-180V addresses these challenges with its advanced control systems, sturdy build, and fine-tuned grinding capabilities.

In summary, the ZT-180V PCD Grinding Machine is an indispensable tool for manufacturers and toolmakers who require precision grinding of PCD and PCBN tools. Its combination of a broad tip radius range, substantial machine weight for stability, high-precision FAGOR angle encoder, and an efficient packing size makes it a standout choice in the category of hard materials grinders. Whether you are looking to improve tool performance, extend tool life, or increase production efficiency, the ZT-180V is engineered to deliver superior grinding results with consistency and reliability.

Applications:

The CTSTC ZT-180A PCD grinding machine is a highly specialized tool designed for precision grinding of PCD/PCBN tools and materials. Manufactured in China and certified with CE, this machine is ideal for industries requiring meticulous shaping and sharpening of cutting tools made from polycrystalline diamond (PCD) and polycrystalline cubic boron nitride (PCBN). Its robust construction and advanced features make it suitable for both large-scale manufacturing environments and specialized tool refurbishment workshops.

One of the primary application occasions for the CTSTC ZT-180A is in the production and maintenance of PCD/PCBN tools grinder components used in machining and automotive industries. The machine's maximum grinding diameter of 200 mm allows it to handle a wide range of tool sizes with great accuracy. This capability ensures that manufacturers can maintain tight tolerances and improve the longevity and performance of their cutting tools.

The inclusion of a high-precision FAGOR angle encoder enhances the machine's grinding accuracy, making it an excellent choice for scenarios where precision is paramount. The pneumatic system, equipped with reliable JAPAN SMC brand components, ensures smooth and efficient operation, reducing downtime and enhancing productivity. These attributes make the CTSTC PCD grinding machine well-suited for use in environments where consistent quality and operational stability are critical.

Furthermore, the machine is packaged securely in a sturdy wooden plywood box with packing dimensions of 1850*2100*1650 mm, ensuring safe delivery even over long distances. With a delivery time of 45-60 days and flexible payment terms including TT, LC, and Western Union, CTSTC accommodates various customer needs and international trade requirements. The minimum order quantity of just one unit makes it accessible for small enterprises and individual workshops looking to upgrade their grinding capabilities.

In summary, the CTSTC ZT-180A PCD grinding machine is perfectly suited for a variety of application scenarios, from high-precision tool manufacturing to maintenance and refurbishment of PCD/PCBN materials grinder tools. Its advanced features, reliable components, and versatile packaging and delivery options make it a preferred choice for industries focusing on advanced cutting tool technology and high-performance grinding solutions.

Packing and Shipping:

Our PCD Grinding Machine is carefully packaged to ensure it arrives at your facility in perfect condition. Each machine is securely wrapped with protective materials and placed inside a robust wooden crate to prevent any damage during transit. The packaging is designed to withstand rough handling and environmental factors, ensuring the machine's safety from our factory to your doorstep.

For shipping, we offer multiple options including sea freight, air freight, and express courier services, depending on your location and urgency. The machine is thoroughly inspected and tested before dispatch, and all necessary documentation, including user manuals and warranty certificates, are included in the shipment. We also provide tracking details so you can monitor your order until it reaches you.

Our logistics team coordinates with reliable carriers to ensure timely delivery, and we offer assistance with customs clearance and import procedures if required. Customer satisfaction and product integrity are our top priorities throughout the packaging and shipping process.

FAQ:

Q1: What is the brand and model number of the PCD Grinding Machine?

A1: The PCD Grinding Machine is manufactured by CTSTC and the model number is ZT-180A.

Q2: Where is the PCD Grinding Machine made?

A2: The PCD Grinding Machine is made in China.

Q3: Does the PCD Grinding Machine have any certifications?

A3: Yes, the PCD Grinding Machine is CE certified.

Q4: What is the minimum order quantity for the PCD Grinding Machine?

A4: The minimum order quantity for the PCD Grinding Machine is 1 unit.

Q5: How is the PCD Grinding Machine packaged for delivery?

A5: The machine is packed securely in a plywood box to ensure safe transportation.

Q6: What is the typical delivery time for the PCD Grinding Machine?

A6: The delivery time typically ranges from 45 to 60 days after order confirmation.

Q7: What payment methods are accepted for purchasing the PCD Grinding Machine?

A7: We accept payment via TT (Telegraphic Transfer), LC (Letter of Credit), and Western Union.
